Brand | UE Electronic |
Model NO. | UEP100A322C |
Input Voltage | 180-264VAC |
Input Current | 1A |
Output Voltage | 250V |
Output Current (AC) | 10A Max |
Cable Length | 1.5m |
Dimensions | 84.0mm(L)X80.0mm(W)x67.0mm(H) |
Weight | About 430g |
Advantage

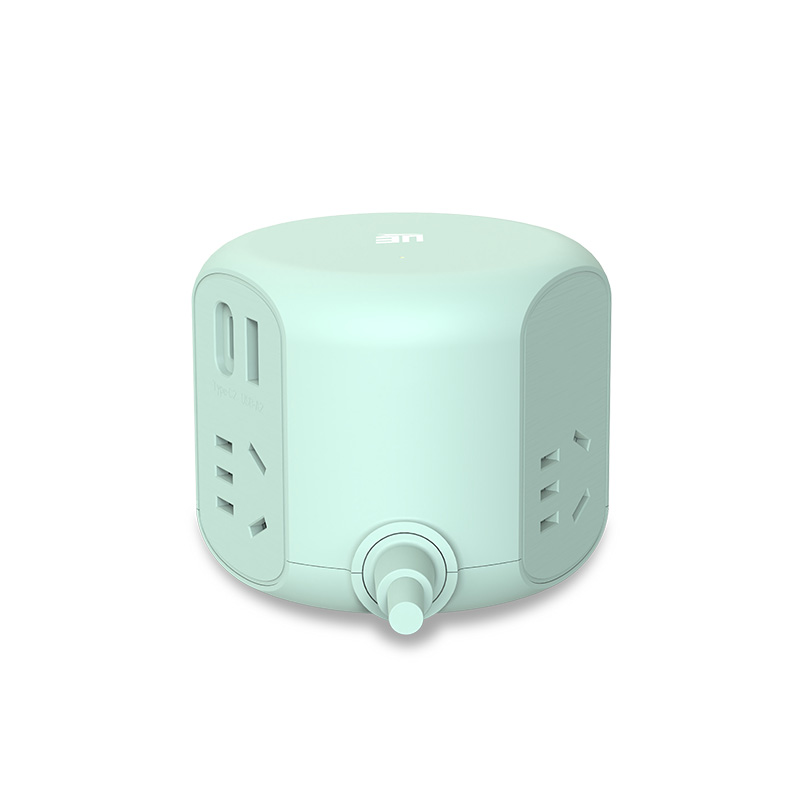

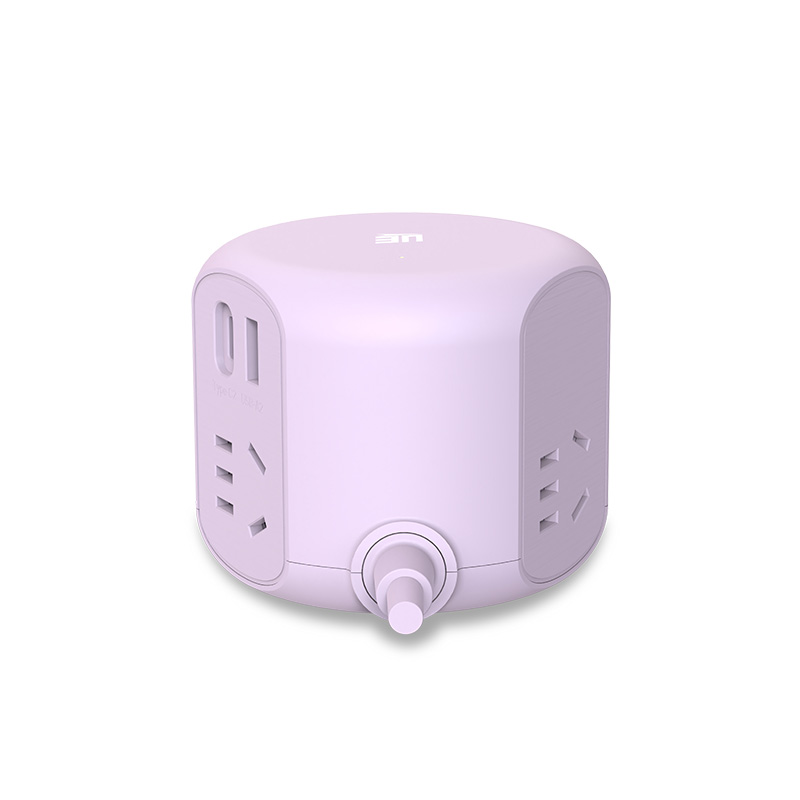

1.Vibrant and Trendy Appearance: Offered in four cheerful Macaron-inspired shades—blue, pink, purple, and gray—this smart power strip adds a lively and modern flair to any desktop or workspace.
2.Multi-Device Charging Capability: Featuring 3 AC sockets, 2 USB-C, and 2 USB-A ports, it supports simultaneous use of several devices, making it ideal for charging everything from laptops and phones to tablets and other small electronics.
3.Efficient GaN Power Technology: Built with Gallium Nitride (GaN), it delivers enhanced performance with lower heat output. Each USB-C port can supply up to 68W, enabling fast and stable charging for power-hungry devices.
Ideal Usage Scenarios

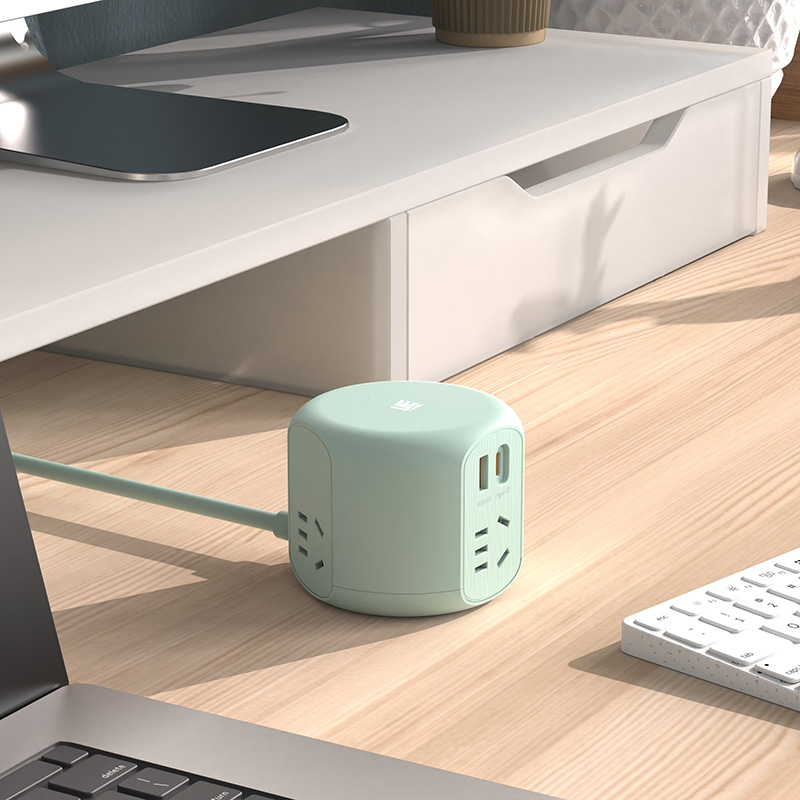

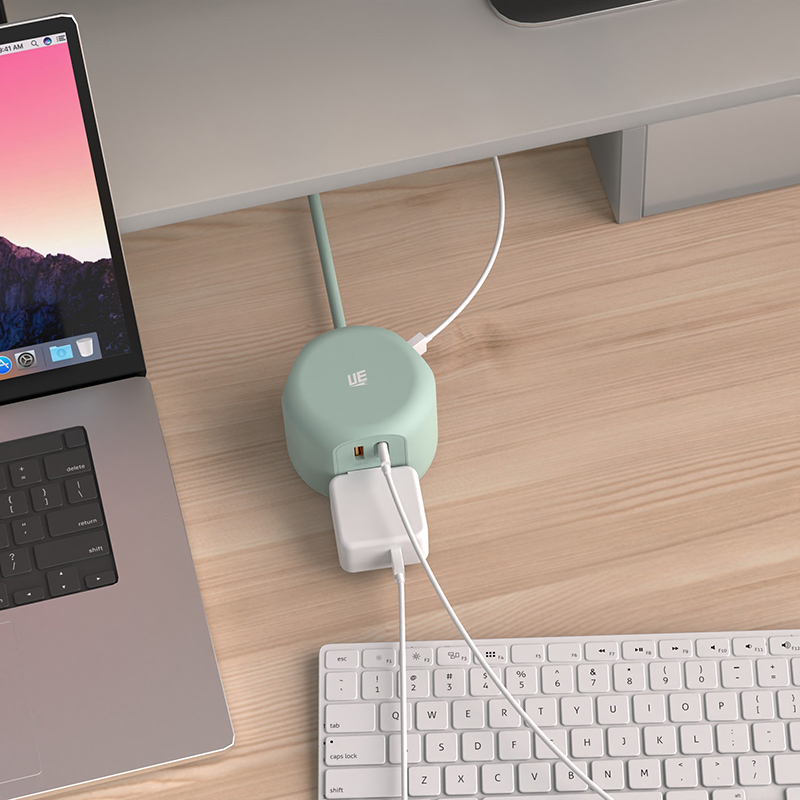

1. Efficient Home Office Companion: The 100W CN Plug 7-in-1 USB GaN Smart Power Strip serves as a reliable charging hub in a home office. It efficiently powers a range of devices—such as laptops, smartphones, wireless earbuds, and even desk accessories like fans or lamps—while helping maintain a clean and organized workspace.
2. Entertainment Setup Solution: In your living room, this smart power strip is great for managing the energy demands of devices like a smart TV, game console, streaming box, and other accessories. With its mix of AC and USB ports, it keeps everything fully charged and running smoothly for uninterrupted entertainment.
3. Dorm Room Must-Have: Perfect for student living, this power strip offers a convenient way to charge multiple electronics in tight spaces. Whether it’s a phone, tablet, laptop, or small dorm appliances like a mini fridge or lamp, it helps maximize outlet usage while minimizing clutter.
USB output combination data
Type-C1/C2 | 5V/9V/12V/15V,3A,20V/5A,100W Max |
USB-A1/USB-A2 | 5V/3A,9V/3A,10V/2.25A,11V/3A,12V/2.75A,20V/1.65A,33W Max |
Type-C1+C2 | 65W+35W；100W Max |
USB-A1+A2 | 33W+33W；66W Max |
Type-C1+A2 | 65W+33W；98W Max |
Type-C2+A1 | 65W+33W；98W Max |
Type-C1+A1 | 5V/6A；30W Max |
Type-C2+A2 | 5V/6A；30W Max |
Type-C2+C1+A1 | 65W+5V6A；95W Max |
Type-C1+C2+A2 | 65W+5V6A；95W Max |
Type-A2+C1+A1 | 33W+5V6A；63W Max |
Type-A1+C2+A2 | 33W+5V6A；63W Max |
Type-C1+A1+C2+A2 | 5V6A+5V6A；60W Max |
Standard
EMC standard | EN55032/CISPR32; EN55035/CISPR35 |
Conduction & Radiation | EN55032/CISPR32 Class B |
Harmonic Currents | IEC/EN 61000-3-2 Class A |
Voltage Flicker | IEC/EN 61000-3-3 |
ESD | IEC/EN 61000-4-2 ±8 KV Air, ±4KV Contact |
Radiated Immunity | IEC/EN 61000-4-3 3V/m |
EFT/Burst | IEC/EN 61000-4-4 ±1KV |
Surge | IEC/EN61000-4-4 ±1 KV DM, ±2KV CM |
Conducted Immunity | IEC/EN 61000-4-6 3Vrrns |
Dips & Interruptions | IEC/EN 61000-4-11 0%,70% ,0% of UT |
